In-Situ Metallography

In-Situ Metallographic testing is carried out to determine the conditions with respect to any degradation or abnormality present in the equipment due to the operational conditions.

Pressure and temperature plays an important role in degradation mechanism for alloys like plain carbon, medium carbon and high alloy steels used in different process plant application. Principally, addition of alloying elements increases ability to withstand severe process demands by generating proper metallurgical conditions in an alloy. Various NDT Inspections are carried out on operating plants for various reasons like, condition assessment, life assessment to avoid failure and for safe and reliable operation. Due to critical assessment requirement of plant components, microstructural evaluation of the component has become powerful tool.

The technique of in situ metallography involves location selection, mechanical grinding &polishing / electrolytic polishing, electrolytic etching or chemical etching, replication and microstructural observation. The kit of in-situ metallography comprises of portable grinder, light grinder with variable speed controller, electrolytic etcher/polisher, microscope and variety of consumables. The consumables can be listed as self-adhesive polishing papers of different grit size, self-adhesive velvet cloth, solvents, water bottles, diamond paste, and suspended alumina, electrolytes and replica films


DAMAGE MECHANISMS THAT ARE DETECTED THROUGH MICROSTRUCTURESTUDIES

Damage mechanisms that are common to a variety of industries including refining and petrochemical, pulp and paper, and fossil utility are covered in this Section.

The principle deterioration mechanisms that could be detected by using in situ metallographic techniques are the microstructural degradation like Spheroidization of pearlite, creep, hydrogen attack, carburization, grain boundary oxidization and em-brittlement of microstructure etc. Aspects of each will be considered in turn. Depending upon the alloys used and microstructure conditions with expertise on interpretations skills many other mechanisms and damages can be predicted.



DEGRADATION OF PEARLITE:

Microstructures are designated with respect to the microstructural degradation. This may be only a diffusional degradation or creep damage, which would have taken place because of high temperature exposure of the component. Prolonged high temperature exposure of carbon and low- alloy steels renders pearlite colonies into spheroids. However, addition of alloying elements like Chromium and Molybdenum retards spherodisation.

In Carbon steels & Cr-Mo steels are subjected to diffusional degradation by sequential degradation of pearlite followed by formation of carbides (spherodisation). The spherodisation of pearlite reduces the mechanical strength of the steel and alloys steels. When complete spherodisation occurs it needs replacement of the component.

In materials such as austenitic stainless steels carbide precipitation at grain boundaries leads to depletion of matrix chromium resulting in loss of corrosion resistance.

Various methods of classifying the boiler steel microstructures are followed. A widely accepted Classification is described by

Designated Level Vs Description of Microstructure

(For Diffusion degradation level)

Level IL: Minimal tendency to break up of bainite/pearlite.

Level IIL: Incipient break of bainite& isolated precipitated carbides in ferrite.

Level IIIL: Distinct break up of bainite/pearlite. Ferrite grows darker due to carbide precipitation

Level IVL: Bainite/pearlite structure visible. Distinct grain boundary carbides and dot like Precipitates in ferrite.



CREEP DAMAGE:

Creep is one of the most serious high temperature damage mechanisms. It involves time dependent deformation and high temperature creep cracking, develops at grain boundaries in engineering components that fail over an extended time. These include boiler super-heater and other components operating at high temperature, petrochemical furnace and reactor vessel components and gas turbine blades. At higher temperatures, with local overheating, deformation may be localized with large plastic strains and wall thinning. At somewhat lower temperatures and under correspondingly higher stress level. The fracture is eventually intergranule in nature. Classification of creep damage in the components exposed to creep range has been made using the largely qualitative approach based on distribution of creep voids and micro cracks observed by in situ metallography. The three stages of creep and associated microstructure degradations are represented in the sketch given below. Basic guidelines for evaluation of creep damage and provide judgment on the inspection intervals are given in Table.  In situ metallography used in conjunction with semi quantitative tools like hardness measurements indicating loss of tensile strength would permit remaining life assessment studies on components undergoing creep damage. A point worth noting at this juncture is that the chrome Molly steels are liable to fail by creep in a short time by displaying spheroidzation of carbides but with little void formation.


HIGH TEMPERATURE OXIDATION:

Under highly oxidizing atmosphere grain boundary oxidization takes place that penetrate inside. Thus, the thickening of grain boundaries in carbon steels can be seen with etching response during insitu metallography.

DECARBURISATION:

The carbon in the steel can react with oxygen and in the atmosphere at high temperature to get decarburization of the surface. The loss of carbon in the surface of steel can be found out from microstructure examinations.

GRAIN COARSENING:

Grain coarsening takes place with prolonged high temperature exposure which decreases the strength of the steel. This can be easily noticed by microstructure examination.

EMBRITTLEMENT AND CARBURIZATION

Embrittlement from precipitations arise in a number of different ways for instance, sigma phase formation in austenitic stainless steels maintained at high temperature or cycled through the critical temperature range of 565 to 989 oC causes loss of ductility and embrittlement. Ferritic stainless steels may be subjected to embrittlement phenomenon when held at or cooled over the temperature range 550 to 400oC. If the temperature conditions are likely to lead to such effects, metallographic checks are employed after extended exposure prior to an unexpected rupture developing. Cracks can initiate from the brittle carburized layer, which has little resistance to bending. This can be detected by metallography. Normally the damages are compared with the normal microstructures on comparison basis to judge the extent of degradations.

SPECIMEN PREPARATION TECHNIQUE -

  • Grinding –Flatten the specimen with hand grinder to minimum depth to get surface free from pin holes/ scaling/ pitting/surface corrosions and care to be taken not to go too deep nor more than 1.0 mm from surface. Grind the surface with emery papers (80- Grit to 172 Grit Paper) should be done in a particular direction to that of proceeding paper. Once the Grinding steps are completed, the area is ready for Polishing.
  • Polishing - Wash the sample thoroughly and finally polish by the Portable Polisher Using Lavigated Aluminium oxide Suspension or Magnesium oxide Suspension (i.e. 6-micron diamond compound followed by 1-micron diamond compound polish).  Once the polishing steps are completed, the area is ready for Etching.
  • Etching – to etch the reagents in the mirror finished surface of the test required locations as per table. Refer page 5 and 6.
  • Replication – A small piece of cellulose acetate, 3 to 5mm thick and approximately three times the size of the area to be replicated, is held by tweezers and softened on one side only. Apply acetone with an eyedropper, allow to set for approximately 30 seconds, and then shake to remove excess acetone. The soften side is then pressed firmly against the area with the eraser end of a pencil or tip of the fingers and helped several seconds. Care must be taken that the acetate is not allowed to slip or a smudged replica will be obtained. Let the replica remain in this position until it hardens, usually 10 to 15 minutes, depending upon the size of the replica. Once it has hardened it can be stripped with tweezers. At this point the stripped replica should be put into a separate container (usually a small Plastic box, or taped to a glass slide with double-sided tape. Several Replicas should be made of each area and should be labelled appropriately.

PROCEDURE – EXAMINATION OF REPLICA

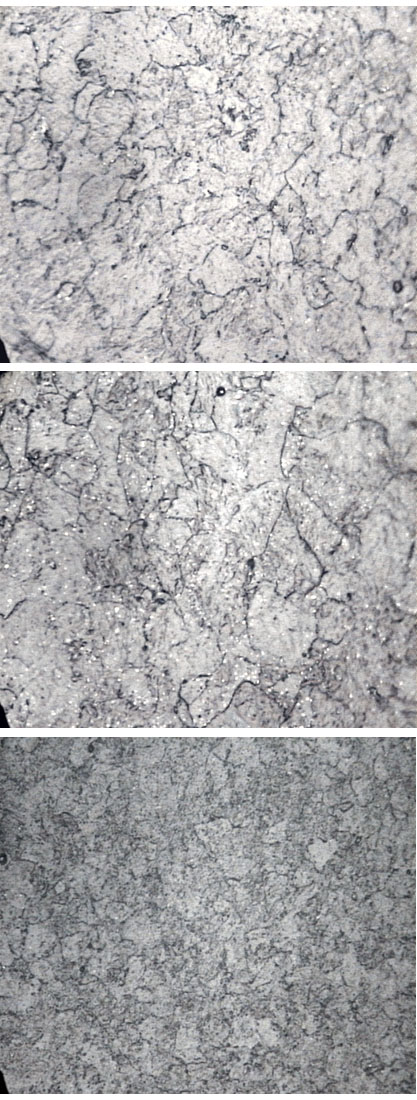

  • Examination of replica carried out with the Metallurgical Microscope at 100 X, 400X & 500X and photographs can be taken and also semi quantitative evaluations can be made.
  • Examine the replicated Specimen in Metallurgical Microscope under 100 X & higher magnification for the following.
    • Microstructure
    • Condition of Metals
    • Grain Size
    • Decarburization if any
    • Internal Granular Cracks if any
    • Any other Micro Defects.
  • The Microphotographs can be taken for any of the above features, if desired on Metallurgical Microscope.
